Let users interact anonymously, convert them when they see value.

⚡ Getting Started

Integrating Ghost into your Frappe deployment takes less than 5 minutes and requires zero modifications to your database schemas or existing custom user tables.

1. Prerequisites & Installation

Ensure your system is running Frappe Framework v15 or later with an operational MariaDB database and active scheduled jobs background worker.

# Fetch application repository from GitHub
bench get-app https://github.com/muneeb141/ghost

# Install app onto your target site
bench --site your-site.localhost install-app ghost

2. Initial Configuration (OAuth Client)

Ghost operates natively on standard industry OAuth2 Bearer Token Authentication rather than fragile session cookies. Before enabling, configure your site's OAuth client:

1. Navigate to Setup > Integrations > OAuth Client in Frappe Desk.
2. Create a new OAuth Client with Grant Type set to Password / Authorization Code.
3. Copy the generated Client ID value.
4. Navigate to Setup > Ghost Settings, check Enable Ghost Feature, and paste your Client ID.

3. Quick API Verification

Test your live installation immediately using simple command-line HTTP requests:

curl -X POST http://your-site:8000/api/method/ghost.api.ghost.create_ghost_session \
  -H "Accept: application/json"

Expected Successful Response (200 OK):

{
  "message": {
    "user": "ghost_4f9a823c@guest.local",
    "access_token": "a1f59c8d23b7e40a...",
    "refresh_token": "f901c238e4a9b231...",
    "expires_in": 3600,
    "token_type": "Bearer"
  }
}

🚀 How It Works & Conversion Mechanics

Ghost acts as an intelligent identity bridge between anonymous interactions and permanent verified user records. When an unauthenticated visitor interacts with your platform, Ghost provisions a secure temporary guest account accompanied by cryptographically secure OAuth2 tokens.

┌────────────────────────────────────────────────────────────────────────┐
│  1. Anonymous Visitor arrives on Web/Mobile App                        │
│     └── Request: create_ghost_session()                                │
│     └── Return:  Bearer Token + temporary ghost_xxxx@guest.local       │
├────────────────────────────────────────────────────────────────────────┤
│  2. Active Browsing & Data Accumulation                                │
│     └── User populates Cart, Favorites, Wishlists using Bearer token   │
│     └── Option: capture_lead_email() triggers abandoned cart reminders │
├────────────────────────────────────────────────────────────────────────┤
│  3. Seamless Verification & Transition                                 │
│     └── Option A: OTP Verification via Email or SMS                    │
│     └── Option B: One-Click Magic Email Link                           │
│     └── Option C: Instant Social Sign-In (Google OAuth ID Token)       │
├────────────────────────────────────────────────────────────────────────┤
│  4. Permanent Account Established (Zero Data Loss!)                    │
│     └── Targeted SQL reassigns all Cart & Wishlist links automatically │
│     └── Real user tokens returned; temporary ghost credentials voided  │
└────────────────────────────────────────────────────────────────────────┘

Dual Conversion Pathways

To preserve production system performance and avoid severe database lockouts caused by standard framework ORM table scanning, Ghost implements two optimized conversion pathways:

• Path A: Targeted Rename (New Users): When converting to a real email address that does not yet exist in your database, Ghost uses high-speed direct SQL queries against configured link and child tables (_GHOST_LINK_TABLES and _GHOST_CHILD_TABLES), changing the user ID record instantly without initiating heavy framework table scans.
• Path B: Manual Migration (Existing Users): If the user enters an email address that already has an active registered account, Ghost bypasses standard user merging entirely. Instead, it reassigns ownership of application-owned records (such as active carts or lead logs) from the ghost ID to the existing account, ensuring complete isolation and protection of user credentials.

🎯 Universal Industry Applications & Use Cases

Ghost is intentionally designed as an agnostic, industry-neutral authentication and conversion engine. From a functional and technical perspective, standard "register-first" paywalls degrade user acquisition across every modern software domain. Ghost eliminates these barriers by decoupling guest session state from mandatory identity registration, empowering high-growth digital businesses across diverse verticals:

Architectural Versatility (Frontend & Backend Neutrality)

Because Ghost operates as a clean abstraction layer over the native Frappe Framework User, OAuth2 bearer token, and scheduler ecosystems, system engineers can integrate it into any modern client-side environment. Whether your enterprise UI is built in React, Next.js, Vue, Nuxt, Svelte, iOS Swift, Android Kotlin, Flutter, or traditional server-rendered Jinja / Frappe Desk templates, Ghost handles temporary token lifecycle pruning and high-performance SQL transformations in the background with zero database lockouts.

✨ Feature Roster (11 Complete Modules)

Ghost provides an extensive suite of modular tools designed to enhance user acquisition, protect infrastructure, and provide powerful actionable insights.

⚙️ Ghost Settings Reference

Ghost enforces a strict techno-functional rule: every single feature must be fully configurable by system administrators from a centralized dashboard. No capability is hardcoded to "always on."

Figure 2: Centralized administrative controls in Ghost Settings > Ghost Identity

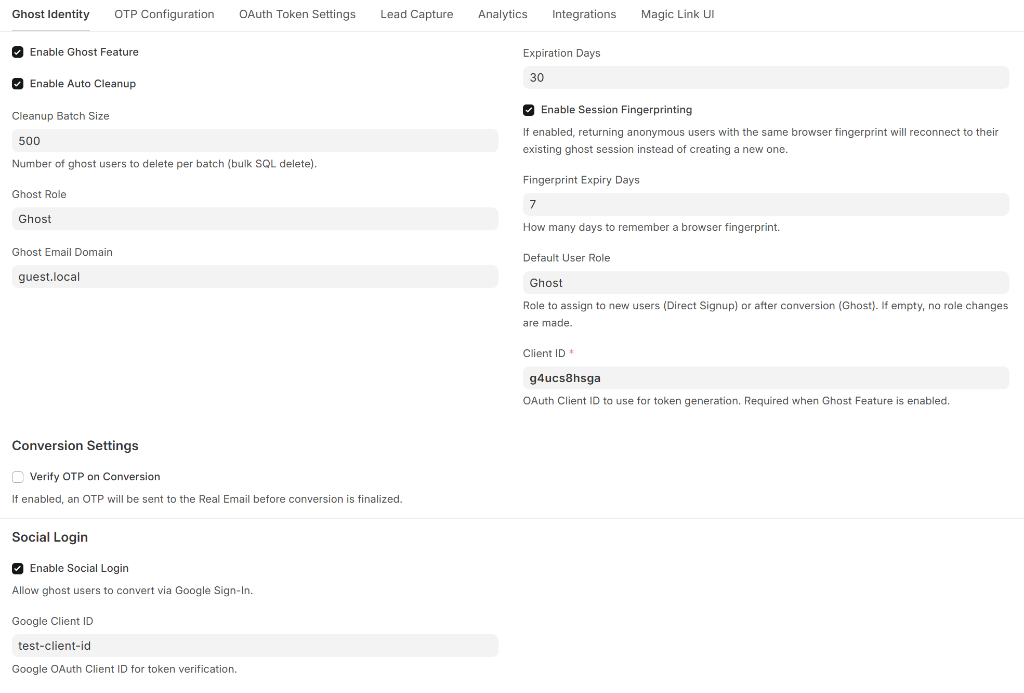

Tab 1: Ghost Identity & Social Login

Serves as the primary control panel for anonymous account creation, batch database purging routines, session fingerprinting limits, and third-party Social Login transformations.

Figure 3: Scrolled view showing Magic Link frictionless authentication and template settings

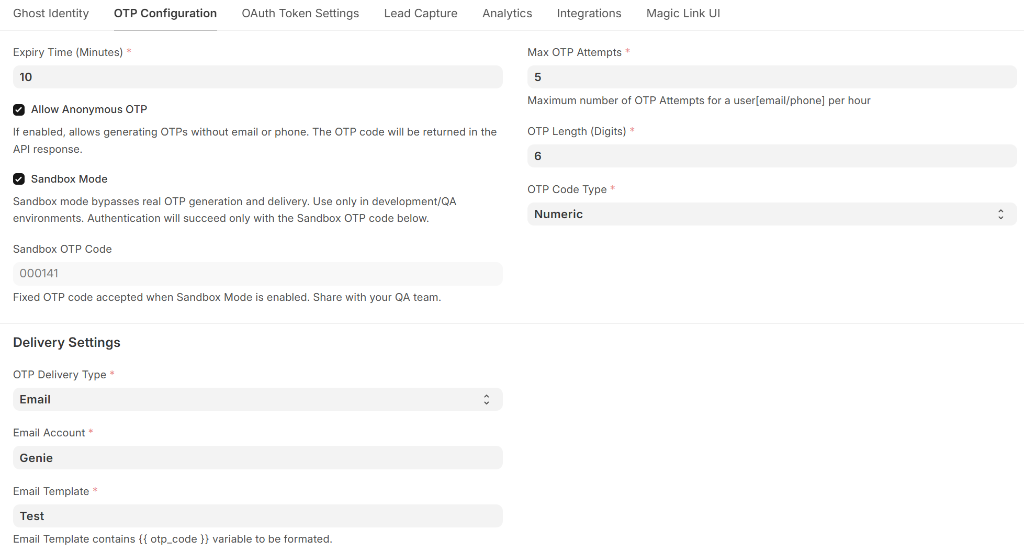

Tab 2: OTP Configuration

Governs one-time password expiration windows, delivery channels (Email/SMS/Both), rate limiting lockout policies, and developer QA testing bypass overrides.

Figure 4: Developer testing capabilities featuring Sandbox Mode and customizable delivery accounts

Tab 3: OAuth Token Settings

Establishes rigorous security parameters over temporary access tokens, refresh token longevity schedules, and automatic cryptographic cleanup policies upon conversion.

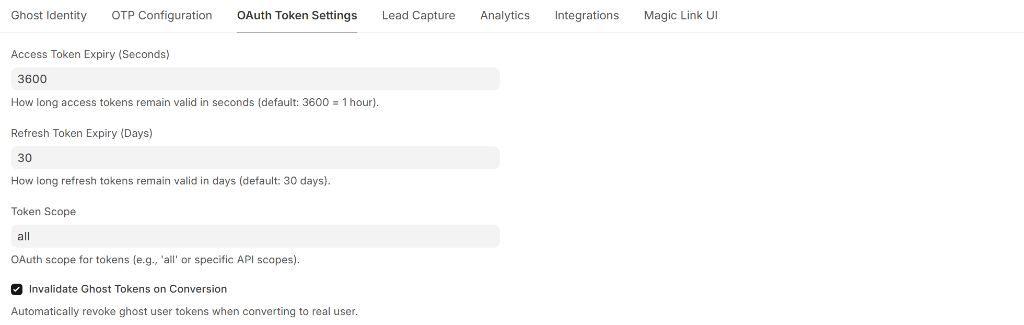

Figure 5: Fine-grained token lifecycle controls and automated session invalidation rules

Tab 4: Lead Capture & Multi-Device Merging

Provides abandoned cart recovery tools by saving guest emails into dedicated CRM records while unifying disparate guest sessions across mobile and desktop interfaces.

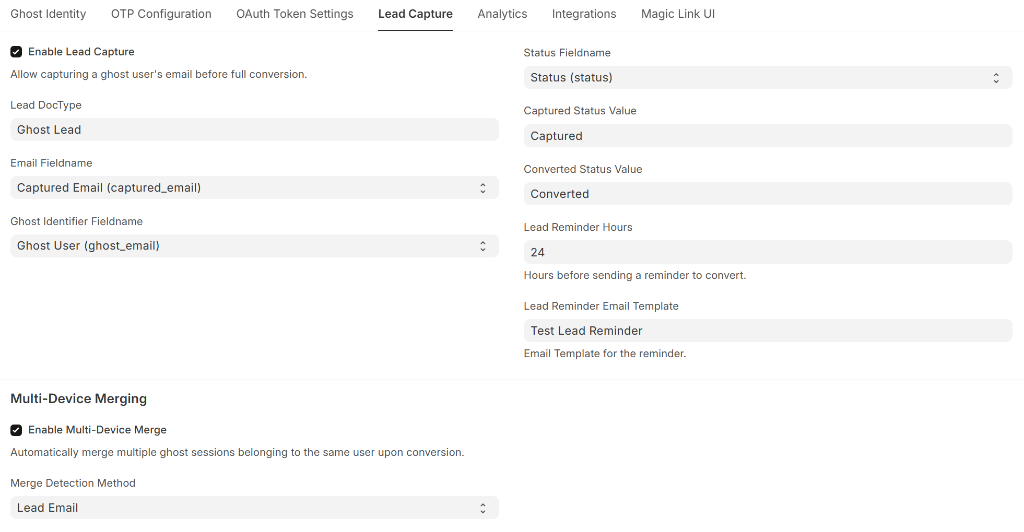

Figure 6: Abandoned cart lead mapping and Multi-Device Merge settings

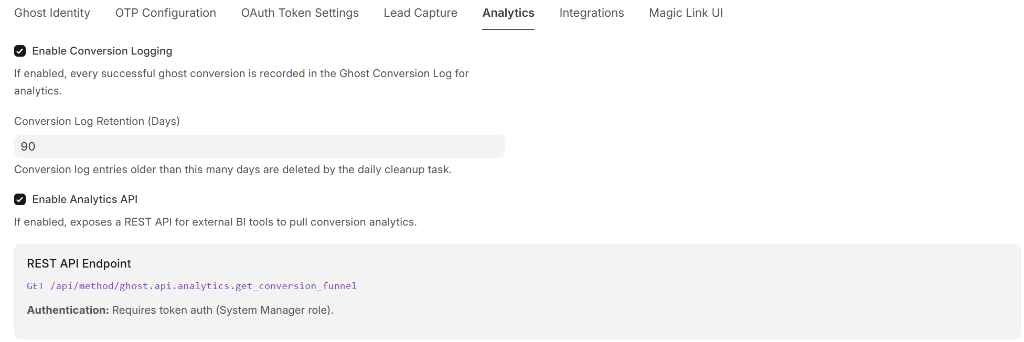

Tab 5: Analytics & Funnel Monitoring

Configures conversion performance event logging and displays read-only reference documentation for integrating real-time conversion funnel telemetry into custom management reports.

Figure 7: Conversion tracking toggles and helper reference notes

Tab 6: Integrations & Webhooks

Facilitates server-to-server event dispatching and live WebSocket broadcasting when guest accounts successfully transform into registered profiles.

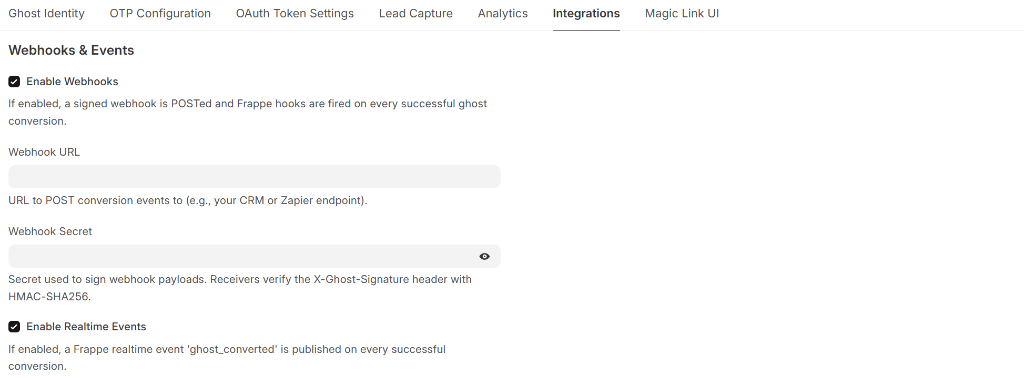

Figure 8: Secure HMAC-SHA256 external webhook integrations and live WebSocket streaming toggles

Tab 7: Magic Link UI Customization

Enables developers and marketing teams to completely override the default styling and layout of automated passwordless conversion verification web pages using raw HTML, CSS, and dynamic Jinja template variables (such as {{ magic_link }} and {{ error_message }}).

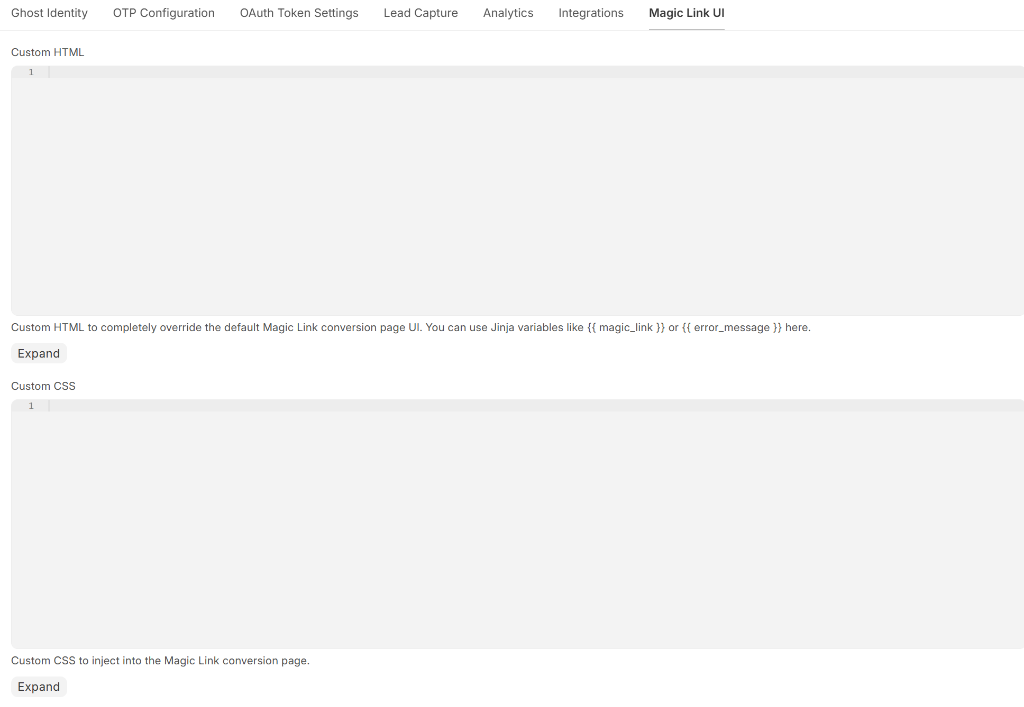

Figure 9: Raw HTML/CSS theme overrides and dynamic Jinja variable templating controls

📊 Native Desk Analytics & Conversion Telemetry

Ghost eliminates the need for expensive third-party tracking software (such as Google Analytics, Mixpanel, or PostHog) by integrating an enterprise-grade interactive data visualizer directly into your native Frappe Desk interface. Hosted at the Ghost Analytics administrative page, this dashboard delivers high-resolution, real-time telemetry across your entire customer onboarding pipeline.

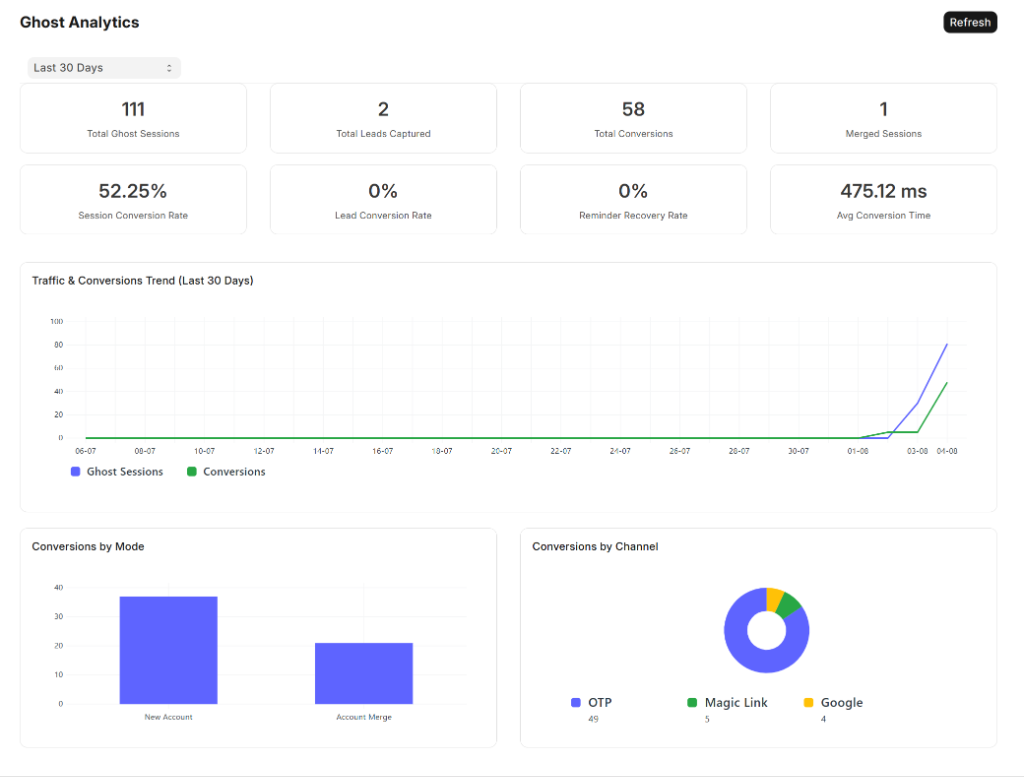

Figure 10: Native Frappe Desk conversion analytics dashboard showcasing real-time KPI metric cards, interactive traffic trend curves, and conversion channel breakdowns

1. Real-Time Performance & KPI Metrics

The top metric panel consolidates 8 essential real-time conversion and telemetry indicators:

• Session & Lead Conversion Rates (52.25%): Immediately quantify exactly what percentage of temporary anonymous visitors transition into authenticated registered customers.
• Sub-500ms Execution Speed (Avg Conversion Time): Demonstrates the immense architectural performance of Ghost's targeted SQL transformation engine, recording lightning-fast average conversion latencies (e.g., 475.12 ms) without causing database table locking!
• Merged Sessions & Reminder Recovery Rates: Explicitly track abandoned cart recovery metrics and cross-device account unifications in real time.

2. Interactive Timeframes & Multi-Channel Breakdown

Equipped with responsive date range filtering (Last 7 Days, Last 30 Days, Last 90 Days, and Last 180 Days), system administrators can drill deep into historical traffic trends. The visualizer splits telemetry across two core dimensions:

• Conversions by Mode (Bar Chart): Analyzes the exact proportion of users claiming brand-new accounts (New Account) versus recurring customers merging anonymous sessions back into pre-existing user profiles (Account Merge).
• Conversions by Channel (Donut Chart): Provides instant visibility into your most popular user acquisition pathways, categorizing successful transformations across One-Time Passwords (OTP), passwordless Magic Links, and instantaneous Google Social Login!

📡 Complete API Reference

All endpoints accept requests formatted as standard JSON payloads with appropriate authorization headers. Rate limits default to 100 calls per hour per originating IP address.

1. Session & Identity

create_ghost_session

Provisions a new anonymous profile and returns OAuth2 bearer tokens. If fingerprinting is enabled, passing a recognized hash gracefully reconnects the visitor to their existing unexpired account.

• URL: /api/method/ghost.api.ghost.create_ghost_session
• Method: POST
• Authorization: None (Guest allowed)

// Request Body
{
  "email": null,            // Optional custom email override
  "fingerprint": "a8f9d231" // Optional device fingerprint hash
}

// Success Response (200 OK)
{
  "message": {
    "user": "ghost_8b10c9da@guest.local",
    "access_token": "79b32c8f001a4e93...",
    "refresh_token": "b8901c2374ef091b...",
    "expires_in": 3600,
    "token_type": "Bearer",
    "message": "Ghost session created" // Or "Reconnected to existing Ghost session"
  }
}

convert_to_real_user

Converts an authenticated temporary user into a persistent real account upon presenting a valid verified OTP verification code.

• URL: /api/method/ghost.api.ghost.convert_to_real_user
• Method: POST
• Authorization: Bearer Token (Current Ghost Session)

// Request Body
{
  "ghost_email": "ghost_8b10c9da@guest.local",
  "real_email": "jane.doe@example.com",
  "first_name": "Jane",
  "last_name": "Doe",
  "otp_code": "849201",
  "bypass_otp": false
}

// Success Response (200 OK)
{
  "message": {
    "status": "success",
    "mode": "rename", // Or "manual_migration" if account existed
    "user": "jane.doe@example.com",
    "access_token": "e4b90a811c79402a...",
    "refresh_token": "a1d88b002c91823f...",
    "expires_in": 3600
  }
}

2. OTP Verification & Authentication

send_otp

Dispatches a secure 6-digit verification pin to a target email or mobile phone number.

• URL: /api/method/ghost.api.otp.send_otp
• Method: POST
• Authorization: None (Guest allowed)

// Request Body
{
  "email": "jane.doe@example.com",
  "phone": "+15551234567",
  "purpose": "Conversion"
}

validate_otp

Verifies a submitted OTP PIN against an unexpired stored record without initiating conversion directly.

• URL: /api/method/ghost.api.otp.validate_otp
• Method: POST

refresh_bearer_token

Exchanges a previously granted valid OAuth2 refresh token for a fresh short-lived access token.

• URL: /api/method/ghost.api.auth.refresh_bearer_token
• Method: POST

// Request Body
{
  "refresh_token": "b8901c2374ef091b..."
}

3. Advanced Conversion Modules

send_magic_link & consume_magic_link

Dispatches a one-click authentication link via email (send_magic_link) and verifies token conversion when clicked by the recipient (consume_magic_link).

• URL: /api/method/ghost.api.magic_link.send_magic_link
• URL: /api/method/ghost.api.magic_link.consume_magic_link

convert_with_google

Validates an identity token issued by Google OAuth Providers to execute instantaneous zero-friction account transition.

• URL: /api/method/ghost.api.social.convert_with_google
• Method: POST
• Authorization: Bearer Token

// Request Body
{
  "ghost_email": "ghost_8b10c9da@guest.local",
  "id_token": "eyJhbGciOiJSUzI1NiIsImtpZCI6..."
}

capture_email

Records a customer's email address during mid-session browsing without demanding immediate verification, supporting cart abandonment email workflows.

• URL: /api/method/ghost.api.lead.capture_email
• Method: POST
• Authorization: Bearer Token

get_conversion_funnel (BI & Analytics)

Exposes time-series analytics funnel stage evaluations formatted specifically for external charting tools (Grafana / Metabase).

• URL: /api/method/ghost.api.analytics.get_conversion_funnel
• Method: GET
• Authorization: System Manager / Administrative Bearer Token

💻 Frontend Integration Guide

Below is a copy-paste ready reference implementation demonstrating how to incorporate Ghost into modern React, Vue, or native JavaScript Single Page Applications (SPAs).

Complete User Lifecycle Walkthrough

// ================================================================
// 1. INITIALIZE GHOST SESSION & STORE BEARER TOKEN
// ================================================================

// Simple simulated device fingerprint hash generator
function getDeviceFingerprint() {
  let fp = localStorage.getItem('ghost_device_fp');
  if (!fp) {
    const raw = navigator.userAgent + screen.width + 'x' + screen.height;
    let hash = 0;
    for (let i = 0; i < raw.length; i++) {
      hash = ((hash << 5) - hash) + raw.charCodeAt(i);
      hash |= 0;
    }
    fp = 'fp_' + Math.abs(hash).toString(16);
    localStorage.setItem('ghost_device_fp', fp);
  }
  return fp;
}

// Initialize session immediately upon landing on your storefront
async function initSession() {
  const response = await fetch('/api/method/ghost.api.ghost.create_ghost_session', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json', 'Accept': 'application/json' },
    body: JSON.stringify({ fingerprint: getDeviceFingerprint() })
  });

  const { access_token, refresh_token, user } = (await response.json()).message;

  // Save credentials safely in storage
  sessionStorage.setItem('access_token', access_token);
  localStorage.setItem('refresh_token', refresh_token);
  sessionStorage.setItem('ghost_user', user);
}

// ================================================================
// 2. INTERACT WITH YOUR PLATFORM USING TOKENS
// ================================================================
async function addToCart(itemCode, qty) {
  const token = sessionStorage.getItem('access_token');

  await fetch('/api/method/my_store.cart.add_item', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      'Authorization': `Bearer ${token}` // Pass token in authorization header
    },
    body: JSON.stringify({ item: itemCode, quantity: qty })
  });
}

// ================================================================
// 3. SEAMLESS CONVERSION AT CHECKOUT
// ================================================================
async function requestConversionOTP(customerEmail) {
  await fetch('/api/method/ghost.api.otp.send_otp', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify({ email: customerEmail, purpose: 'Conversion' })
  });
}

async function finalizeAccountConversion(customerEmail, otpCodeInput) {
  const currentToken = sessionStorage.getItem('access_token');
  const ghostEmail = sessionStorage.getItem('ghost_user');

  const res = await fetch('/api/method/ghost.api.ghost.convert_to_real_user', {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      'Authorization': `Bearer ${currentToken}`
    },
    body: JSON.stringify({
      ghost_email: ghostEmail,
      real_email: customerEmail,
      otp_code: otpCodeInput
    })
  });

  const { access_token, refresh_token, user } = (await res.json()).message;

  // Update tokens to reflect permanent authenticated status!
  sessionStorage.setItem('access_token', access_token);
  localStorage.setItem('refresh_token', refresh_token);

  console.log("🎉 User converted successfully! Cart contents preserved.");
}

🗄️ DocType Schema & Data Models

When Ghost is installed onto your Frappe environment via bench migrate, it provisions 6 specialized database schemas (DocTypes) engineered for high-throughput guest session management, strict cryptographic security, and automated database hygiene.

🏗️ System Architecture & Scheduled Workers

Ghost is structured around decoupled service layers that isolate guest operations from standard authenticated business logic, ensuring reliability at scale.

Scheduled Tasks (Scheduler Integration)

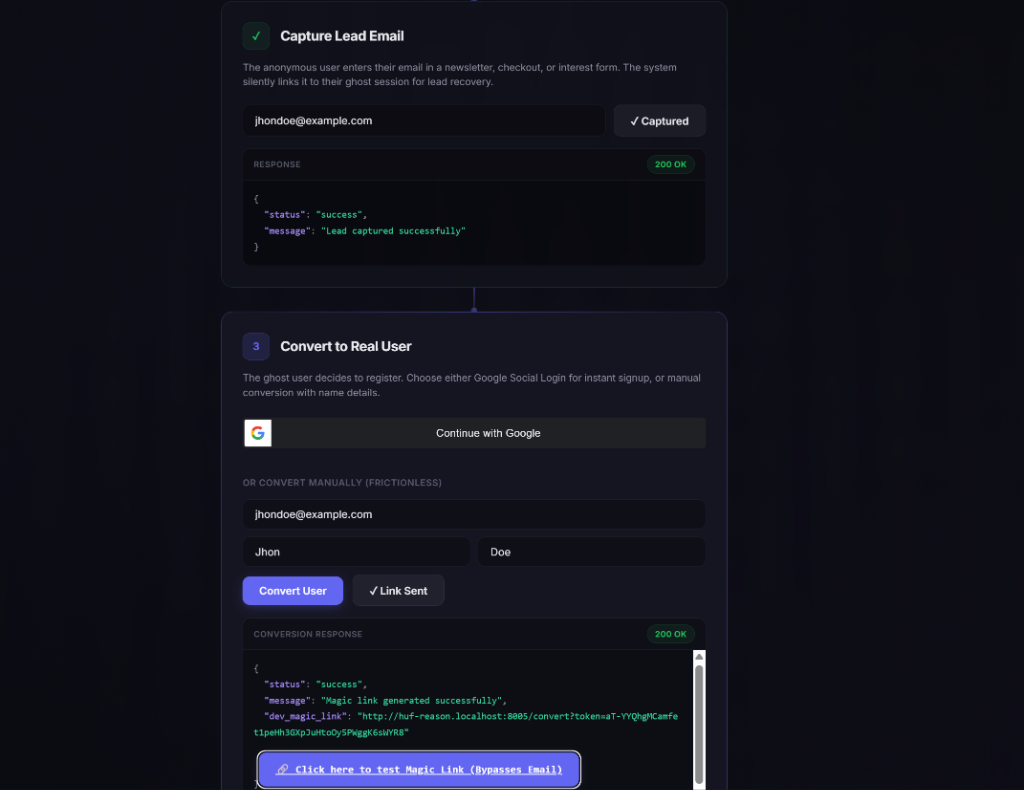

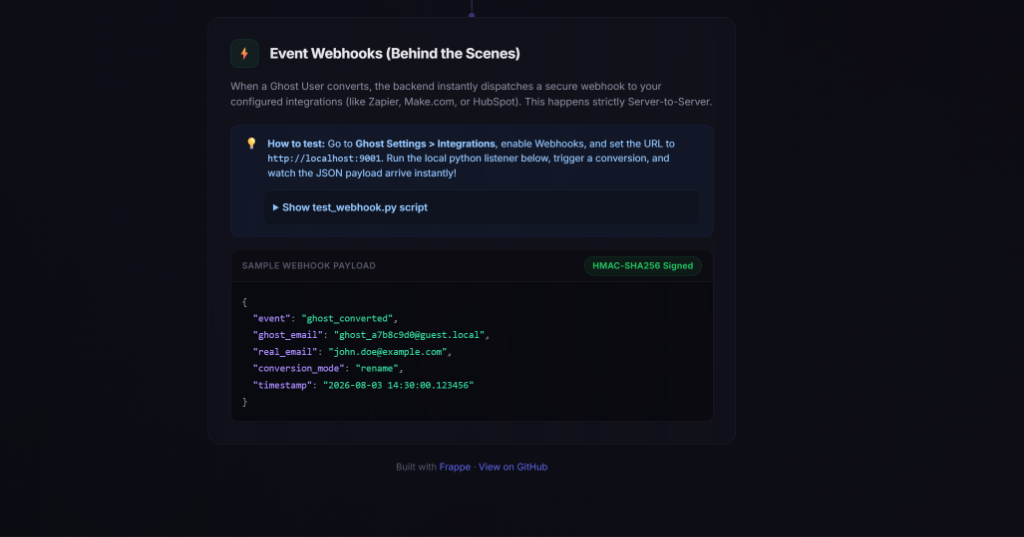

🎮 Interactive Demo UI & Testing Playground

Ghost ships with a full-featured, zero-setup interactive web testing playground hosted at /ghost on your Frappe development server. This allows developers, QA engineers, and marketing evaluators to test the complete anonymous authentication and conversion lifecycle directly in their browser without having to design or deploy custom frontend form components.

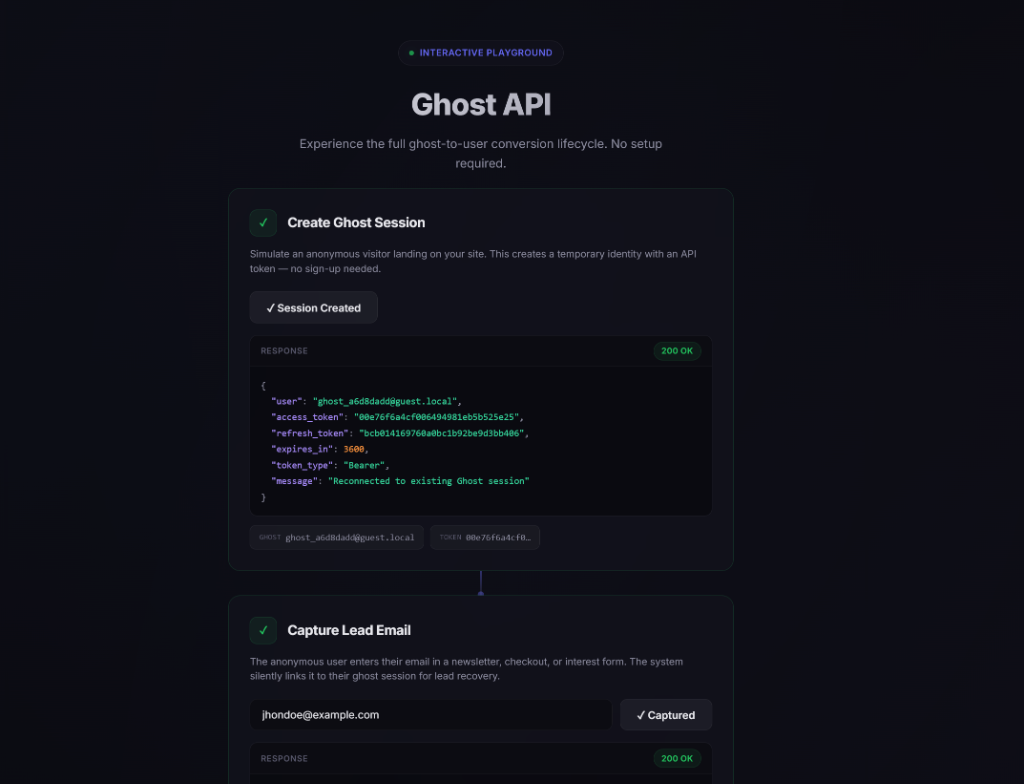

Figure 11: Live browser testing playground simulating anonymous visitor onboarding and lead email capture

1. Simulating Anonymous Sessions & Fingerprinting

By clicking Create Ghost Session in Step 1, the playground triggers an immediate API request to provision a temporary OAuth2 identity and displays the raw JSON bearer tokens in real time. If Session Fingerprinting is enabled in Ghost Settings, returning visitors are automatically recognized by their hardware footprint, emitting a seamless "Reconnected to existing Ghost session" confirmation message!

2. Frictionless Conversions & Developer Magic Link Bypass

In Step 3, users can experience both immediate Google Social Login conversion and frictionless manual email transformations. To accelerate QA workflows and local automated integration testing, the execution panel generates an interactive Developer QA Bypass Button directly inside the live response container!

Figure 12: Step 3 conversion testing showcasing Google Social Login and the automated Magic Link testing bypass button

Clicking the generated purple button (🔗 Click here to test Magic Link (Bypasses Email)) allows integration testers to immediately transition ghost accounts without having to set up live SMTP servers or open third-party email inboxes!

3. Standalone Verification Landing Page (/convert)

When users verify their identities via Magic Links or automated transactional notifications, Ghost routes them through our clean, secure, dark-mode verification web portal hosted at /convert. This interface can be completely skinned and branded using raw HTML/CSS from Tab 7 in Ghost Settings.

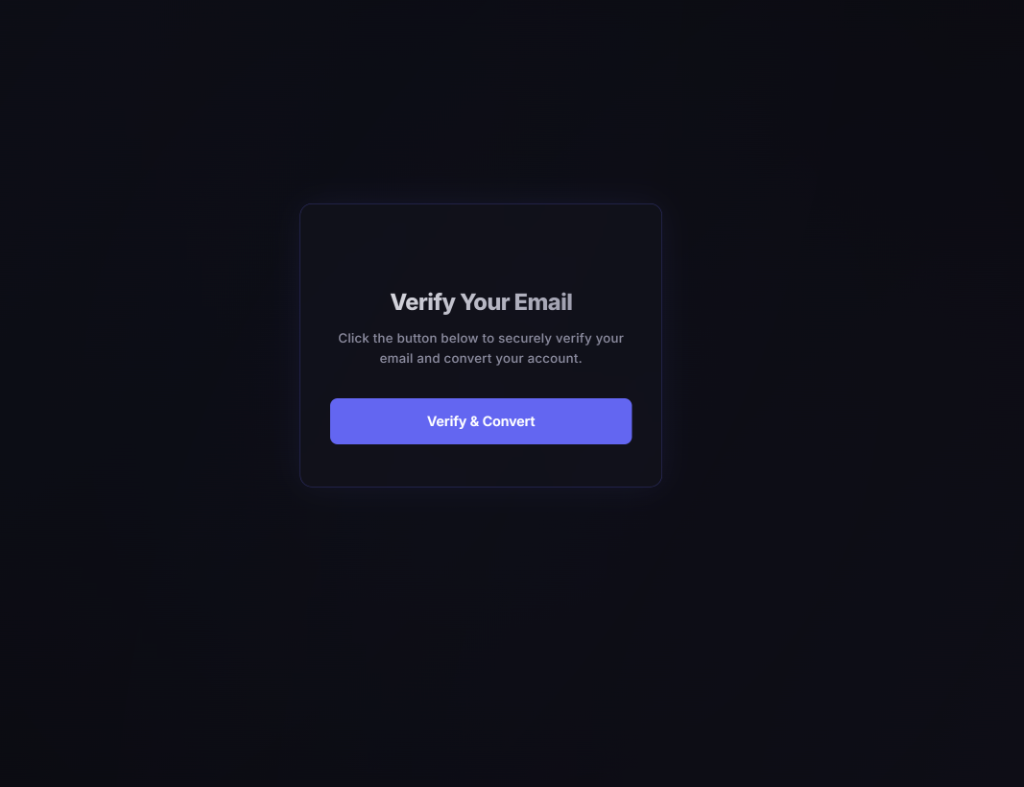

Figure 13: Out-of-the-box secure verification landing page located at /convert

4. Realtime Webhooks & Behind the Scenes Telemetry

At the bottom of the interactive playground, developers can monitor live event dispatches. When an account converts, Ghost displays the structured JSON payload along with its cryptographic HMAC-SHA256 signature verification headers, complete with instructions for launching a local listener script (test_webhook.py).

Figure 14: Live server-to-server webhook simulation and signature verification card

🧪 Testing & Bruno Verification Suite

Ghost prioritizes rock-solid production stability and maintains an extensive verification ecosystem covering unit testing, functional verification, and continuous integration.

Running Unit Tests

Our automated testing framework spans 15 standalone Python test suites located inside ghost/tests/. To execute verification directly against your developer site:

# Run complete test coverage suite from bench command line
bench --site your-site.localhost run-tests --app ghost

# Run specific feature test modules
bench --site your-site.localhost run-tests --app ghost --module ghost.tests.test_fingerprinting

Bruno API Collection

We bundle an extensive Bruno API Collection inside the repository's /bruno/ subdirectory. Containing 13 pre-built requests equipped with automatic post-response scripts that populate tokens into your workspace variables, it represents the fastest way to verify API contracts manually or inside automated CI pipelines.

Refer to bruno/README.md for complete test flow instructions.

🤔 FAQ & Troubleshooting

Q: Why am I receiving an error stating "OAuth Client ID is required"?

Ghost generates standard OAuth2 bearer tokens for guest user sessions. Before initializing sessions, you must generate an OAuth Client inside Frappe desk (Setup > Integrations > OAuth Client) and paste its corresponding ID into your Ghost Settings.

Q: What happens to cart items, order proposals, or custom application data when a ghost converts?

During conversion, Ghost's engine intelligently inspects all link and child tables associated with your application (_GHOST_LINK_TABLES). If converting to a new email address, it performs a high-speed direct SQL rename, preserving 100% of linked records instantly. If converting to an existing registered user, it reassigns ownership of application-owned records without executing heavy framework merges.

Q: Can I utilize Ghost inside React Native, Flutter, or mobile web view applications?

Yes! Because Ghost avoids browser cookies entirely and operates solely on standard OAuth2 authorization header tokens (Authorization: Bearer ), it integrates seamlessly into native iOS and Android mobile client environments.

Q: Is Ghost compliant with GDPR and enterprise privacy standards?

Yes. Ghost automatically triggers daily scheduled pruning jobs that erase expired anonymous guest records from your database after a configurable retention threshold (defaulting to 30 days). No lingering personally identifiable data is left behind.

🤝 Community Support, Privacy & Legal Compliance

Ghost is an open-source Frappe framework extension designed with strict security, GDPR data privacy compliance, and developer transparency at its core.

1. Technical Support & Issue Reporting

For community bug fixes, architectural questions, or feature enhancement proposals, please interact directly with our development team through official repository channels:

• Issue Tracker & Bug Reports: https://github.com/muneeb141/ghost/issues
• Developer Repository: https://github.com/muneeb141/ghost

2. Privacy Policy & Data Retention (GDPR Compliance)

Ghost is engineered to eliminate unnecessary database storage of sensitive user metadata. Anonymous guest profiles, hardware fingerprints, and conversion audit logs are governed by automated scheduler workers that prune obsolete records according to strict administrative retention limits (defaulting to 30 days for sessions and 90 days for audit logs). Ghost never transfers user telemetry or identification tokens to third-party tracking networks.

3. Terms of Service & Open Source License

Ghost is free and open-source software distributed under the terms of the Massachusetts Institute of Technology (MIT License). You are free to copy, modify, distribute, and integrate this software within commercial and enterprise Frappe deployments without subscription restrictions or proprietary vendor lock-in. Full licensing terms can be reviewed directly in our Repository License File.
